XHRL 系列

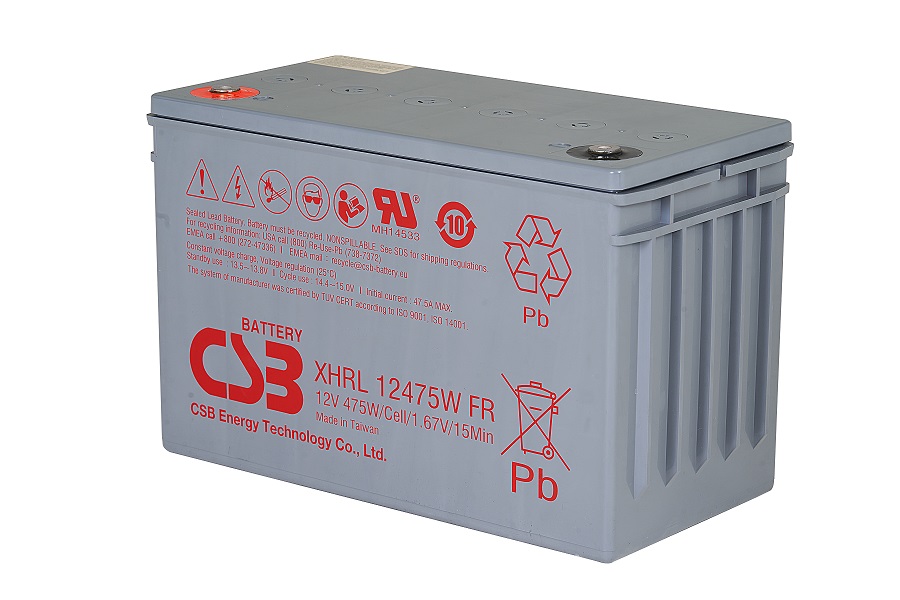

CSB蓄电池XHRL12475W

.：XHRL 12475W battery is specially designed for high-rate discharge applications. service life is up to 10 years in standby use.

XHRL12475W

12 V	475.0w/cell
XHRL 12475W battery is specially designed for high-rate discharge applications. service life is up to 10 years in standby use.

下载专区 :

规格书

局数

电压值

12 V

安培数	475.0W@ 15 Minute-Rate to 1.67V Per Cell @ 25°C(77°F)

重量	Approx. 36.2 kg (79.78 lbs)

最大放电电流

800A (5sec)

内阻	Approx. 2.30 mΩ

温度工作范围

Discharge：-15℃~50℃ (5°F~122°F)
Charge：-15℃~40℃ (5°F~104°F)
Storage：-15℃~40℃ (5°F~104°F)

一般使用温度工作范围

25°C±3°C (77°F±5°F)

浮充使用充电电压

13.5 to 13.8 VDC/Unit Average at 25°C(77°F)

建议充电最大电流

47.5 A

均充使用充电电压

14.4 to 15.0 VDC/Unit Average at 25°C(77°F)

自放电	Less than 10% after 90 days, can be stored up to 6 months at 25℃ (77℉);

端子	I2 (1/4") thread lead alloy terminal to accept M6 (1/4") bolt

电槽材质	Polypropylene(UL 94-HB) & Flammability resistance of (UL 94-V0) can be available upon request.
